TOP2004通用USB編程器

TOP2004通用編程器直接采用USB接口通訊和供電，可以工作在Win98SE/Me/2000/XP操作系統，無須外接電源，編程速度快，支持2.5V～6.5V器件，軟件升級靈活。

一、簡介：

    TOP2004使用最新的TopWin軟件，相比TOP2003有更好的兼容性和穩定性，支持器件更多。

    TOP2004型編程器具有體積小巧，功耗低，可靠性高的特點，是專為開發單片機和燒寫各類存儲器而設計的通用機型。

    TOP2004采用USB通用串口與PC機連接通信，傳輸速率高,抗干擾性能好，可靠性能極高，而且無需外接電源，特別適用于電池供電的筆記本電腦外出使用。
　
二、特點:

◎ 可支持2.5～6.5V的器件；
◎ 使用USB接口電源，無需外接電源; 通過USB通用串口與PC機連接，傳送速率12MHz/s;
◎ 即適合電池供電的筆記本電腦使用，也適合臺式機使用；
◎ 完善的過電流保護,有效地保護編程器和器件不受損害;
◎ 自動檢測元件是否插好，如果插錯了位置有提示;
◎ USB負載能力檢測（0至10級）;
◎ 全插腳檢查，可以檢查出任意一個插腳的的接觸狀態;
◎ 40針國產萬能鎖緊插座;
◎ 在WINDOWS98SE/ME/2000/XP 下運行，中英文操作界面，體積小，重量輕，功耗低；
◎ 可自動探測廠家和型號；
◎ 單片機定時，編程速度與計算機無關；

三、支持器件

◎ 可支持2.5～6.5V的器件；
◎ EPROM ：各廠家 2716-27080;
◎ EEPROM：各廠家28、29、39、49系列flesh 和 EEPROM;
◎ MPU/MCU: 51系列 Intel ,Atmel，LG,Philips,Winbond;
◎ 測試靜態RAM 6264-628256
◎ 串口存儲器：24Cxxx，93Cxx
◎ PLD: 16v8x,20v8x

四、性能和規格

1. 軟件： TOPWin（for windows98se/200/2003/xp）
2. 體積：168x115x26
3. 重量：280g
4. 功率：<2.5W（5V/500mA）
5. 鎖緊座：40Pin優質活動鎖緊座

五、編程器軟件的安裝：

1、請務必?cái)嚅_(kāi)編程器，不要連接編程器

2、運行配套光盤中TOPWIN目錄內的SETUP.EXE文件，按照提示進行安裝

3、最后按“確認”重啟電腦

4、電腦重啟完成后，用配套的USB電纜連接編程器，電腦會提示“找到新硬件”按照提示自動搜索軟件，一直完成USB初始化安裝

5、光盤中TOPWIN10.EXE是中文界面的編程器軟件，可以進行安裝

6、運行“開始－程序－TOPWIN”軟件會出現“正在初始化USB接口，需要3～10秒”的界面，隨后進入專用編程軟件

7、如果因?yàn)榘惭b次序不正確引起的或者其他原因造成安裝失敗，可以點擊：我的電腦－右鍵“屬性”－硬件－設備管理器－JUNGO中有黃色感嘆號的選中按DEL刪除，然后再重復以上1～6步驟即可。

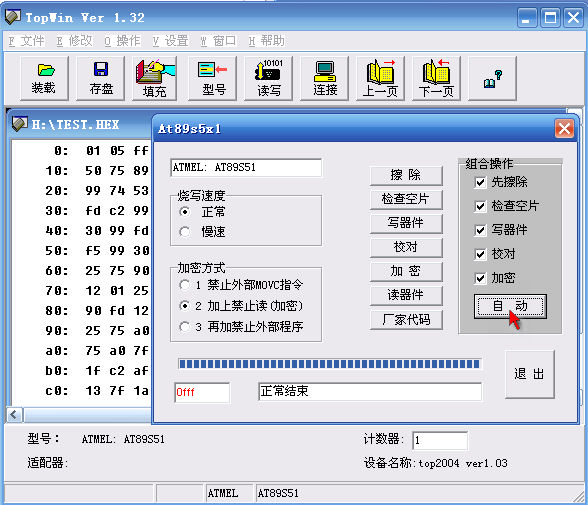

這是編程器的專用軟件界面：

TOP2004編程器套件如下圖：

1、 TOP2004主機一臺
2、USB通訊電纜一根
3、《TOP2004通用編程器》說明書一本
4、《TopWin軟件操作手冊》一本
5、配套的TopWin軟件光盤一張
6、保修卡一張

備注：如果不需要AT89S51實驗開發板中的12伏電源變壓器，價格可以降低10元

銀行帳號及郵購需知立即進入訂貨系統! 查看全部郵購清單

郵局匯款地址：郵編226200 江蘇省啟東市江海中路511號水晶苑 A1 謝剛收

電話/傳真：0513－83342087 小靈通：0513－83082087 聯系人：謝剛

電子信箱：

電子制作實驗室網站主頁 http:www.xinjiapolvyou.cn

TOP2004編程器可編程的支持器件列表:

2716-12.7V, 2716-21V, 2716-25V, 2732-12.7V, 2732-21V, 2732-25V, 2764-12.7V, 27C64-12.7V,P27,
2764-21V, 2764-25V, 27128-12.7V,P27, 27C128-12.7V,P27, 27128-21V, 27256-12.7V,P27,
27C256-12.7V,P27, 27512-12.7V,P27, 27C512-12.7V,P27, 27513-12.7V,P27, 27C513-12.7V,P27,
27C010-12.7V,P27, 27C020-12.7V,P27, 27C040-12.7V,P27, 27C080-12.7V,P27, 27C801-12.7V,
____EPROM-AMD
Am2716-12.7V,P27, Am2716-21V, Am2716-25V, Am2732-12.7V,P27, Am2732-21V, Am2732-25V,
Am2764-21V, Am2764A-12.5V,P27, Am27C64-12.5V,P27, Am2128-21V, Am27128A-12.5V, Am27C128-12.7V,P27,
Am27256HV-21V, Am27C256-12.75V, Am27C256P-12.75V, Am27H256-12.75V, Am27512-12.75V,
Am27512/L-12.75V, Am27C010-12.75V, Am27H010-12.75V, Am27HB010-12.75V, Am27C020-12.75V,
Am27C040-12.75V, Am27C080-12.7V,
____EPROM-ATMEL
AT2716-12.7V,P27, AT2716-21V, AT2716-25V, AT2732-12.7V,P27, AT2732-21V, AT2732-25V,
AT27HC64-12.7V, AT27HC64L-12.7V, AT27C128-12.7V, AT27C256-12.7V, AT27HC256-12.7V,
AT27/HC256-12.7V, AT27C512-12.7V, AT27C512R-12.7V, AT27C513-12.7V, AT27C513R-12.7V,
AT27C010/L-12.7V, AT27C011-12.7V, AT27C040-12.7V, AT27C080-12.7V,
____EPROM-CATALYST
CAT2764A-12.7V, CAT27128A-12.7V, CAT27C128-12.7V,P27, CAT27C256-12.7V, CAT27512-12.7V,
CAT27C010-12.7V,
____EPROM-FUJITSU
MBM2716-12.7V,P27, MBM2716-21V, MBM2716-25V, MBM2732-12.7V,P27, MBM2732-21V, MBM2732-25V,
MBM2764-21V, MBM27C64-21V, MBM27128-21V, MBM27C128-21V, MBM27256-12.7V, MBM27C256A-12.7V,
MBM27C512-12.7V, MBM27C1000-12.7V, MBM27C1001-12.7V, MBM27C4001-12.7V, MBM27C080-12.7V,
____EPROM-GENERAL
2716-12.7V,P27, 2716-21V, 2716-25V, 2732-12.7V,P27, 2732-21V, 2732-25V, 2764-21V,
27C64-21V, 2764A-12.7V, 27C6A-12.7V, 27128-21V, 27128A-12.7V, 27C128-12.7V,P27, 27256,
27C256, 27256HV-21V, 27512, 27C512, 27512HV-21V, 27513,P27, 27C513,P27, 27010, 27C010,P27,
27011, 27C011,P27, 27101,P27, 27C101,P27, 27C020,P27, 27C040,P27, 27C080,P27,
____EPROM-HITAVHI
HN27C64-21V, HN27128AG-12.7V, HN27128P-21V, HN27/C256,P27, HN27/C512,P27, HN27C101,P27,
HN27C301,P27,
____EPROM-ST
27128, 27C128, 27256, 27C256, 27512, 27C512, 27C1000, 27C1001, 27C405, 27C4001, 27C801,
____EPROM-HYUNDAI
27C64-12.7V, 27C128-12.7V, 27C256-12.7V, 27C512,P27, 27C010,P27, 27C020,P27,
____EPROM-ICT
27CX256,P27, 27CX128,P27, 27CX256,P27, 27CX512,P27, 27CX010,P27, 27CX020,P27,
____EPROM-INTEL
i2716-12.7V,P27, i2716-21V, i2716-25V, i2732-12.7V,P27, i2732-21V, i2732-25V, i2764-21V,
i27C64-12.7V, i2764A-12.7V, i87C64-12.7V, i27128-21V, i27A128-12.7V, i27C128-12.7V,
i27C256-12.7V, i87C256-12.7V, i27C512,P27, i27C010,P27, i27010,P27, i27010A,P27,
i27020,P27, i27C040,P27, i27C080,P27,
____EPROM-MATSUSHITA
27C256,P27, 27C128,P27, 27C256,P27, 27C512,P27, 27C010,P27, 27C020,P27,
____EPROM-MICROCHIP
27C64-12.7V, 27C128-12.7V, 27HC256,P27, 27C512,P27, 27513,P27, 27C513,P27, 27C010,P27,
27C020,P27,
____EPROM-MITSUBISHI
M5L2764-21V,P27, M5L27C128-12.7V, M5M27128/K-21V, M5M27K-12.7V, M5MC256-12.7V, M5M27C512,P27,
M5M27K512,P27, M5M27C100,P27, M5M27C101,P27, M5M27C102,P27, M5M27C201,P27, M5M27C401,P27,
____EPROM-MXIC
MX2716-12.7V,P27, MX2716-21V, MX2716-25V, MX2732-12.7V,P27, MX2732-21V, MX2732-25V,
MX27C256-12.7V, MX27C512-12.7V, MX27C1000-12.7V,
____EPROM-NEC
D2716-12.7V,P27, D2716-21V, D2716-25V, D2732-12.7V,P27, D2732-21V, D2732-25V, D2764-21V,
D27C64-12.7V, D27128-21V, D27/C256-21V, D27C256A-12.7V, D27C512,P27, D27C1000,P27,
D27C1000A,P27, D27C1001,P27, D27C1001A,P27, D27C2001,P27, D27C4001,P27,
____EPROM-NS
NM2716-12.7V,P27, NM2716-21V,P27, NM2716-25V, NM2732-12.7V,P27, NM2732-21V, NM2732-25V,
NM27LC64-12.7V, NM27C256-12.7V, NM27LC256-12.7V, NMC87C257-12.7V, NM27LC512,P27,
NM27LV512,P27, NM27P512,P27, NMC27C64,P27, NM27C128/B-12.7V, NMC27C128/B-12.7V, NMC27CP128-12.7V,
NMC27C256-12.7V, NMC27C256B-12.7V, NM27C512,P27, NMC27C512,P27, NMC27C512A,P27, NMC27C010,P27,
NMC27C020,P27,
____EPROM-OKI
MSM2716-12.7V,P27, MSM2716-21V, MSM2716-25V, MSM2732-12.7V,P27, MSM2732-21V, MSM2732-25V,
MSM2764A-12.7V, MSM2764AS-21V, MSM27128A-12.7V, MSM27128AS-21V, MSM27256AS-12.7V,
MSM27512AS,P27, MSM271000,P27,
____EPROM-RICOH
27C64-21V, 27C256-12.7V,
____EPROM-SAMSUNG
KM23C4100,P27,
____EPROM-SEEQ
DQ2764-21V,P27, DQ27128-21V, DQ27C256-12.7V,
____EPROM-SGS_THOMSON
M87C257-12.7V,P27, 27/C64A-12.7V, TS2764-21V, M27128A-12.7V, M27256,P27, M27CC512,P27,
M27C1000,P27, M27C1001,P27, M27C2001,P27, M27C4001,P27,
____EPROM-SIGNETICS
27C64A,P27, 27C128,P27, 27C512,P27,
____EPROM-SMOS
27C64H,P27, 27128H,P27, 27C256H,P27,
____EPROM-SONY
CXK27C256,P27, CXK27C512,P27,
____EPROM-TI
TMS2564-25V,P27, TMS2764-21V,P27, TMS27C64-12.7V, TMS27PC64-12.7V, TMS27128-21V,
TMS27C128-12.7V, TMS27CP128-12.7V, TMS27C256,P27, TMS27PC256,P27, TMS87257,P27, TMS27C512,P27,
TMS27CP512,P27, TMS27C010,P27, TMS27PC010,P27, TMS27C020,P27, TMS27PC020,P27, TMS27C040,P27,
TMS27PC040,P27,
____EPROM-TOSHIBA
TMM2716-25V, TMM2732-21V, TMM2764-21V, TMM2764A-12.7V, TMM27128-21V, TMM27128A,P27,
TMM27256A,P27, TMM27256AD,P27, TMM27512,P27, TC541000,P27, TC541001,P27, TC571000,P27,
TC571001,P27, TC532000,P27, TC572000,P27, TC534000,P27, TC574000,P27,
____EPROM-VLSI
VT2716-25V,P27, VT2732-21V,P27, VT27C64,P27, VT27C128,P27, VT27C256,P27, VT27C512,P27,
____EPROM-WSI
WS2716-25V, WS2732-21V, WS27C512F,P27, WS27C64F,P27, WS57C64F,P27, WS27C128F,P27,
WS57C128F,P27, WS57C128FB,P27, WS27C256F,P27, WS27C256L,P27, WS57C256F,P27, WS57C256FB,P27,
WS27C512L,P27, WS27C010F,P27, WS27C010L,P27, WS57C65,P27, WS57C257,P27,
____EEPROM-AMD
AM29C257, AM28F256, AM28F512, AM28F010/A, AM28F020/A, AM29F256, AM29F512, AM29F010,
AM29F010B, AM29F020, AM29F020B, AM29F040, AM29F040B, AM29LV010B, AM29LV020B, AM29LV040B,
AM29F001, AM29F001, AM29F002, AM29F002, AM29F004, AM29F004,
____EEPROM-MACRONIX
MX28F1000, MX28F2000, MX29F010, MX29F020, MX29F040, MX29F001T/B, MX29F002T/B, MX29F004T/B,
____EEPROM-ATMEL
AT2816, AT2816A, AT28C16, AT2817A, AT28C17, AT2864A, AT28C64, AT28HC64, AT28C64X,
AT28C64L, AT28PC64, AT28C64B, AT28HC64B, AT28LV64B, AT28C256, AT28C257, AT28C64,
AT28HC64, AT28C64X, AT28C64L, AT28PC64, AT28C512, AT28C010, AT28C020, AT28C040, AT28C040A,
AT28F256, AT28F257, AT28F512, AT28F010, AT28F020, AT29C257, AT29C256, AT29C256, AT29C257,
AT29C512, AT29C010, AT29C010A, AT29C020, AT29C040, AT29C040A, AT29LV512, AT29LV010,
AT29LV020, AT29LV040, AT29LV040A, AT49F010, AT49F020, AT49F040, AT49F001, AT49F002,
AT49F004, AT49LW040*32PLCC, AT49LW080*32PLCC, AT49LL020*32PLCC, AT49LL040*32PLCC,
AT49LL080*32PLCC,
____EEPROM-ACTRANS
AC39LV512, AC39LV010, AC39LV020, AC39LV040,
____EEPROM-WINBOND
W27E257, W27E512, W27E010, W27E020, W27E040, W27C257, W27C512, W27C010, W27C020,
W27C040, W27F257, W27F512, W27F010, W27F020, W27F040, W28F256, W28F257, W28F512,
W28F010, W28F020, W29EE010, W29EE011, W29EE012, W29C010, W29C020, W29C040, W49F010,
W49F020, W49F040, W49L010, W49L020, W49L040, W49F001, W49F001N, W49F001T, W49F001NT,
W49F002, W49F002N, W49F002T, W49F002NT, W49F002U, W49L001, W49L002, W49V002, W49V004,
W39V040A, W39V040FA,
____EEPROM-CATALYST
CAT2816, CAT2816A, CAT28C16, CAT2817A, CAT28C17, CAT2864A, CAT28C64, CAT28HC64, CAT28C256,
CAT28F512/I, CAT28F512V5/I, CAT28F010/I, CAT28F010V5/I, CAT28F020/I,
____EEPROM-DALLAS
DS1220Y, DS1220AB, DS1220AD, DS1225AB, DS1225AD, DS1225D, DS1225DE, DS1225Y, DS1230Y,
DS1230AB, DS1245Y, DS12449, DS1250Y,
____EEPROM-EXEL
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256,
____EEPROM-EMTC
EM29SF002,
____EEPROM-FUJITSU
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28F256, 28F512, 28F010/A,
28F020/A, 29F010, 29F010A, 29F010B, 29F020, 29F020A, 29F020B, 29F040, 29F040A, 29F040B,
MBM29DL800TA*34DIP, 29F001T/B, 29F002T/B, 29F004T/B,
____EEPROM-HITACHI
HN58C65, HN58C66, HN58C256, HN58C256A, HN58C1001,
____EEPROM-INTEL
i2816, i2816A, i28C16, i2817A, i28C17, i2864A, i28C64, i28HC64, i28F256A, i28F256,
i28F512, i28F010, i28F020, i28F040, i28F001BX-T, i28F001BX-B, N82802AA*32PLCC, N82802AB*32PLCC,
N82802AC*32PLCC,
____EEPROM-ISSI
IS28F010, IS28F020,
____EEPROM-MICROCHIP
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64,
____EEPROM-MITSUBISHI
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, M5M28F101P, M5M28F102P, M5M28C64A,
____EEPROM-NEC
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256,
____EEPROM-OKI
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64,
____EEPROM-SAMSUNG
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64,
____EEPROM-SEEQ
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256/A, 28C010,
____EEPROM-SGS-THOMSON
GS28F256, M28F256A, M28F512, M28F101, M28F102, M28F1001, M28F201,
____EEPROM-ST
M50FW002*32PLCC, M50FW040*32PLCC, M50FW080*32PLCC,
____EEPROM-SST
SST27SF256, SST27SF512, SST27SF010, SST27SF020, SST27VF010, SST27VF020, SST37VF512,
SST37VF010, SST37VF020, SST37VF040, SST2816, SST2816A, SST28C16, SST2817A, SST28C17,
SST2864A, SST28C64, SST28HC64, SST28C256/A, SST28SF040A, SST28VF040A, SST29EE512,
SST29EE010, SST29EE020, SST29EE040, SST29LE512, SST29LE010, SST29LE020, SST29LE040,
SST29VE512, SST29VE010, SST29VE020, SST29VE040, SST29SF512, SST29SF010, SST29SF020,
SST29SF040, SST29VF512, SST29VF010, SST29VF020, SST29VF040, SST39SF512, SST39SF010,
SST39SF020, SST39SF040, SST39LF512, SST39LF010, SST39LF020, SST39LF040, SST39VF512,
SST39VF010, SST39VF020, SST39VF040, SST49LF002, SST49LF002A, SST49LF003, SST49LF003A,
SST49LF004, SST49LF004A, SST49LF008, SST49LF008A, SST49LF020, SST49LF020A, SST49LF030A,
SST49LF040, SST49LF040b, SST49LF080A,
____EEPROM-TI
TMS29F256, TMS29F258, TMS29F259, TMS29F010,
____EEPROM-TOSHIBA
TC58257AP, TC58257AP-LV, TC58F1001P,
____EEPROM-VLSI
2816, 2816A, 28C16, 2817A, 28C17, 2864A, 28C64, 28HC64, 28C256/A, 29C010,
____EEPROM-MOSEL
V29C51000T, V29C51001T, V29C51002T, V29C51004T, F29C51000T, F29C51001T, F29C51002T,
F29C51004T,
____EEPROM-XICOR
X2816, X2816A, X2816B, X28C16, X28C16A, X28C16B, X2817A, X28C17, X2864A, X28C64,
X28HC64, X28C256/A, X28C256, X28C256I, X28HC256, X28TC256, X28VC256, X28C010,
____EEPROM-LINKSMART
LST28001, LST28002, LST28004,
____EEPROM-PMC
PM37VF512, PM37VF010, PM37VF020, PM29F002, PM29F004, PM29LV002, PM29LV004, PM39LV512,
PM39LV010, PM39LV020, PM39LV040, PM49FL002, PM49FL004,
____MPU-AMD
87C51, 87C521, 87C541,
____MPU-ATMEL
AT80F51, AT80F52, AT87F51, AT87F52, AT87F55WD, AT87F51RC, AT89C51, AT89LV51, AT89C52,
AT89LV52, AT89C55, AT89LV55, AT89C55WD, AT89C51RC, AT89S51, AT89LS51, AT89S52, AT89LS52,
AT89C1051, AT89LV1051, AT89C2051, AT89LV2051, AT89C4051, AT89LV4051, AT89S8252, AT89LS8252,
AT89S8252, AT89LS8252, AT89S53, AT89LS53, T89C51RB2, T89C51RC2, T89C51RD2, AT90S1200,
AT90S2313, AT90S4414, AT90LS4414, AT90S8515, AT90LS8515, AT90S4434, AT90S8535, AT90LS8535,
AT90S4434, AT90LS4434, AT90S2333, AT90S4433, ATINY11, ATINY12, ATINY15L, ATINY26,
ATINY26L, ATINY28L, ATINY28V, ATMEGA8, ATMEGA8L, ATMEGA16, ATMEGA16L, ATMEGA32, ATMEGA32L,
ATMEGA8515, ATMEGA8515L, ATMEGA8535, ATMEGA8535L, ATMEGA48*PDIP28, ATMEGA88*PDIP28,
ATMEGA168*PDIP28, ATMEGA161, ATMEGA161L, ATMEGA162, ATMEGA162L, ATMEGA162V, ATMEGA162U,
ATMEGA163, ATMEGA163L, AT90S2323, AT90LS2323, AT90S2343, AT90LS2343,
____MPU-DALLAS
DS87C520, DS89C420, DS89C430, DS89C440, DS89C450,
____MPU-SST
SST89C54, SST89C58, SST89F54, SST89F58, SST89E554RC, SST89E564RD, SST89V554RC, SST89V564RD,
SST89E52RD, SST89E54RD, SST89E58RD, SST89E52RD2, SST89E54RD2, SST89E58RD2, SST89V52RD,
SST89V54RD, SST89V58RD, SST89V52RD2, SST89V54RD2, SST89V58RD2,
____MPU-STC
STC89C58RD, STC89LV58RD, STC89C516RD, STC89LV516RD, C516RD+,
____MPU-SYNCMOS
SM2952, SM2958, SM2964, SM2965, SM8951A, SM8952A, SM8954, SM8958, SM89516, SM89516C,
SM89516L, SM8954A, SM8958A, SM89516A, SSU7301, SM7908, SM79108, SM7964, SM79164,
SM5964, SM59264,
____MPU-MOSELVITELIC
MSU2954, MSU2958, MSU2964, MSU2964as32K, MSU2964as16K, MSU2964as8K, MSU2964as4K,
____MPU-LG
GMS97C51, GMS97C52, GMS97C54, GMS97C58, GMS97C1051, GMS97C2051,
____MPU-INTEL
i87C51, i87C52, i87C54, i87C58, i87C51FA, i87C51FB, i87C51FC, i87LC51FA, i87LC51FB,
i87LC51FC, i87C51RA+, i87C51RB+, i87C51RC+, i87C51RD+, i87LC51RA+, i87LC51RB+, i87LC51RC+,
i87LC51RD+,
____MPU-PHILIPS
P87C51, P87C52, P87C54, P87C58, P87C51X2, P87C52X2, P87C54X2, P87C58X2, P87C51FA,
P87C51FB, P87C51FC, P87LC51FA, P87LC51FB, P87LC51FC, P87C51RA+, P87C51RB+, P87C51RC+,
P87C51RD+, P87LC51RA+, P87LC51RB+, P87LC51RC+, P87LC51RD+, P87C591, P89C51Uxxx, P89C52Uxxx,
P89C54Uxxx, P89C58Uxxx, P89C51Bx, P89C52Bx, P89C54Bx, P89C58Bx, P89C51X2, P89C52X2,
P89C54X2, P89C58X2, P89C51RA+, P89C51RB+, P89C51RC+, P89C51RD+, P89C51RA2Hxx, P89C51RB2Hxx,
P89C51RC2Hxx, P89C51RD2Hxx, P89C51RA2B, P89C51RB2B, P89C51RC2B, P89C51RD2B, P89C51RA2F,
P89C51RB2F, P89C51RC2F, P89C51RD2F, P89C660, P89C662, P89C664, P89C668, P87LPC759,
P87LPC760, P87LPC761, P87LPC762, P87LPC764, P87LPC767, P87LPC768, P87LPC769, P89LPC920,
P89LPC921, P89LPC922, P89LPC930, P89LPC931, P89LPC932, P89LPC933, P89LPC934, P89LPC935,
V51RA2B, C922SPI,
____MPU-WINBOND
W78E51, W78E51B, W78LE51B, W78E52, W78E52B, W78LE52B, W78E54, W78E54B, W78E58, W78E58B,
W78LE58, W78E516B, W78LE516, W78LE51, W78LE52, W78LE54, W77E54, W77E58, W77LE58,
W77LE516,
____MPU-MICROCHIP
PIC12C508, PIC12C508A, PIC12C508B, PIC12C509, PIC12C509A, PIC12C509B, PIC12CE518,
PIC12CE519, PIC12F508, PIC12F509, PIC12F510, PIC12C671, PIC12C672, PIC12CE673, PIC12CE674,
PIC12F629, PIC12F675, PIC12F635-8PIN, PIC12F683-8PIN, PIC16F636-8PIN, PIC16F639-8PIN,
PIC16F684-8PIN, PIC16F685-8PIN, PIC16F687-8PIN, PIC16F688-8PIN, PIC16F689-8PIN, PIC16F690-8PIN,
PIC16F636-14PIN, PIC16F684-14PIN, PIC16F688-14PIN, PIC16F639-20PIN, PIC16F685-20PIN,
PIC16F687-20PIN, PIC16F689-20PIN, PIC16F690-20PIN, PIC16F505, PIC16F506, PIC12F508-new,
PIC12F509-new, PIC12F510-new, PIC16F54, PIC16F57, PIC16F630, PIC16F676, PIC16C505,
PIC16C54, PIC16HV540, PIC16C54-LP, PIC16C54-XT, PIC16C54-RC, PIC16C54-HS, PIC16C54A,
PIC16C54B, PIC16C54C, CF745, PIC16C55, PIC16C55-LP, PIC16C55-XT, PIC16C55-RC, PIC16C55-HS,
PIC16C55A, PIC16C55B, PIC16C55C, PIC16C56, PIC16C56-LP, PIC16C56-XT, PIC16C56-RC,
PIC16C56-HS, PIC16C56A, PIC16C56B, PIC16C56C, PIC16C57, PIC16C57-LP, PIC16C57-XT,
PIC16C57-RC, PIC16C57-HS, PIC16C57A, PIC16C57B, PIC16C57C, CF775, PIC16C58, PIC16C58-LP,
PIC16C58-XT, PIC16C58-RC, PIC16C58-HS, PIC16C58A, PIC16C58B, PIC16C58C, PIC16C64,
PIC16C64A, PIC16C64B, PIC16C65, PIC16C774, PIC16C65A, PIC16C65B, PIC16C74, PIC16C74A,
PIC16C74B, PIC16C71, PIC16C71A, PIC16C71B, PIC16C711, PIC16C712, PIC16C61, PIC16C710,
PIC16C620, PIC16C621, PIC16C622, PIC16C715, PIC16C716, PIC16C62, PIC16C62A, PIC16C62B,
PIC16C63, PIC16C63A, PIC16C63B, PIC16C73, PIC16C73A, PIC16C73B, PIC16C773, PIC16C66,
PIC16C67, PIC16C72, PIC16C72A, PIC16C72B, PIC16C76, PIC16C76A, PIC16C76B, PIC16C77,
PIC16C77A, PIC16C77B, PIC16C641, PIC16C642, PIC16C661, PIC16C662, PIC16C554, PIC16C556,
PIC16C558, PIC16C717, PIC16F627, PIC16F628, PIC16LF627, PIC16LF628, PIC16F627A, PIC16F628A,
PIC16F648A, PIC16LF627A, PIC16LF628A, PIC16LF648A, PIC16F716, PIC16F72, PIC16F73,
PIC16F74, PIC16F76, PIC16F77, PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F83,
PIC16CR83, PIC16C84, PIC16CR84, PIC16F84, PIC16F84A, PIC16F870, PIC16F871, PIC16F872,
PIC16F873, PIC16F874, PIC16F876, PIC16F877, PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A,
PIC16F818, PIC16F819, PIC12F629,
____MPU-MICON
MDT2005, MDT2005E, MDT2010, MDT2010E, MDT2015, MDT2020, MDT2020B, MDT10P21A1P, MDT10P21A1S,
MDT10P21A2K, MDT10P21A3S, MDT10P22A1P, MDT10P22A1S, MDT10P22A2K, MDT10P22A3S, MDT2051,
____MPU-EMC
EM78P156E, EM78P256E, EM78P456E, EM78P247SA, EM78P247SB, EM78P447SA, EM78P447SB,
____MPU-VERSACHIP
V87C54, V87C58,
____MPU-CRESCENTEC
CR80P100, CR80P200, STK99100,
____MPU-TOPTEK
T80P54, T80P57, T80P65,
____MPU-ISSI
IS89C51A, IS89C52A, IS89LV51A, IS89LV52A,
____Serial-???
93C46, 93C56, 93C66, 93C57, 93C86, 93C46, 93C56, 93C66, 93C76, 93C86, 24C01A, 24C02,
24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512,
____Serial-AKM
93C46, 93C56, 93C66, 93C46, 93C56, 93C66,
____Serial-ATMEL
AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256,
AT24C512, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25010A,
AT25020A, AT25040A, AT25080A, AT25160A, AT25320A, AT25640A, AT25F512, AT25F1024,
AT25F1024A,ACTRANS25, AT25F2048, AT93C46, AT93C56, AT93C66, AT93C86, AT93C46, AT93C56,
AT93C66, AT93C86,
____Serial-ACTRANS
AC25512, AC25LC512, AC25010, AC25LC010,
____Serial-CATALYST
93C46, 93C46A, 93C46H, 93C46I, 93C46, 93C56, 93C66,
____Serial-EXEL
XL93C46, XL93C56, XL93C66, XL93CS46, X93C86, X93C46, X93C56, X93C66, X93C86,
____Serial-HYUNDAI
HY93C46, HY93C46, HY93C46, HY93C56, HY93C66,
____Serial-ICT
93C46, 93C46A, 93CX46, 93C56, 93CX56, 93C66, 93CX66, 93C46, 93C56, 93C66,
____Serial-ISSI
93C46/-3, 93C56/-3, 93C66, 93C46, 93C56, 93C66,
____Serial-MICROCHIP
24C01A, 24LC01, 24C02A, 24LC02, 24C04A, 24LC04, 24LC16, 24C16, 24C32, 24C64, 24C128,
24C256, 24C512, 25C040, 25C080, 25C160, 25C320, 25LC040, 25LC080, 25LC160, 25LC320,
25LC640, 25AA040, 25AA080, 25AA160, 25AA320, 25AA640, 59C11, 93C46, 93C56, 93LC56,
93C66, 93LC66, 93C86, 93C46, 93C46, 93C56, 93C66, 93C86, 93C46A, 93C46B, 93C46C,
93C46C, 93C56A, 93C56B, 93C56C, 93C56C, 93C66A, 93C66B, 93C66C, 93C66C, 93C86A, 93C86B,
93C86C, 93C86C, 93LC46A, 93LC46B, 93LC46C, 93LC46C, 93LC56A, 93LC56B, 93LC56C, 93LC56C,
93LC66A, 93LC66B, 93LC66C, 93LC66C, 93LC86A, 93LC86B, 93LC86C, 93LC86C, 93AA46A,
93AA46B, 93AA46C, 93AA46C, 93AA56A, 93AA56B, 93AA56C, 93AA56C, 93AA66A, 93AA66B,
93AA66C, 93AA66C, 93AA86A, 93AA86B, 93AA86C, 93AA86C,
____Serial-NS
NMC9346, NMC93C46, NMC93CS46, NMC93C56, NMC93CS56, NMC93C66, NMC93CS66, NM93C46,
NM93C56, NM93C66, NM59C11, NM24C02/L, NM24C04/L, NM24C08, NM24C16,
____Serial-SAMSUNG
KM93C46, KM93C46V, KM93C56, KM93CS56, KM93C57, KM93C66, KM93CS66, KM93C67,
____Serial-ST
24C01, 24C02A, ST24C04, ST24C08, ST24C16, ST93C46A, ST93C56, ST93C66, ST93C46, ST93C56,
ST93C66, ST93C57, ST93C86, ST93C86,
____Serial-SGS-THOMSON
ST24C01, ST24C02A, ST24C04, ST24C08, ST24C16, ST93C46A, ST93C56, ST93C66, ST93C46,
ST93C56, ST93C66, ST93C57, ST93C86, ST93C86,
____Serial-XICOR
X24C01, X24C01I, X24C01A, X2402, X2402I, X24C02, X24C02I, X2404, X2404I, X24C04,
X24C04I, X24C16, X24C16I, X25043(8pin), X25045(8pin), X5043(8pin), X5045(8pin), X5043(14pin),
X5045(14pin), X93C46, X93C56, X93C66, X93C86, X93C86, X25043(8pin), X25045(8pin),
X5043(8pin), X5045(8pin), X5043(14pin), X5045(14pin),
____Serial-PMC
PM25010, PM25020, PM25040, PM25080,
____PLD-???
16V8, 16V8A, 16V8B, 20V8, 20V8A, 20V8B, 22V10, 22V10A,
____PLD-ATMEL
ATF16V8, ATF16V8B, ATF16V8BL, ATF20V8, ATF20V8B, ATF20V8BL, ATF20V8BQL, ATF22V10,
ATF22V10L, ATF22V10B/L,
____PLD-LATTICE
GAL16V8, GAL16V8A, GAL16V8B, GAL16V8C, GAL16V8D, GAL20V8, GAL20V8A, GAL20V8B, GAL22V10,
GAL22V10A,
____PLD-NS
GAL16V8, GAL16V8A, GAL20V8, GAL20V8A, GAL20V8, GAL22V10,,
____PLD-SGS/THOMSON
GAL16V8, GAL16V8A, GAL16V8AS, GAL16V8S, GAL20V8, GAL20V8A, GAL20V8AS, GAL20V8S, GAL22V10,
____PLD-VLSI
VP16V8, VP20V8,
____RAM-STAND
6116, 6264, 62256, 62512, 628128, 628256, 628512, 2464, 24256, 24512, 24010, 24020,
24040,
____RAM-WINBOND
W2465, W24128, W24257A, W24257AC, W24M257, W24512A, W24M512, W24M512A, W24M1024,
W24010, W24020, W24040,
____RAM-INTEL
6116, 6264, 62256, 62512, 628128, 628256, 628512,
____RAM-DALLAS
DS1220Y, DS1220AB, DS1220AD, DS1225AB, DS1225AD, DS1225D, DS1225DE, DS1225Y, DS1230Y,
DS1230AB, DS1245Y, DS12449, DS1250Y,
____TEST-Standard
74xxx, 40xxx, 45xxx,
____end 1600,
